Electrical Safety

전기 사용에 있어서 가장 위험한 점은 무엇일까요?



개인적으로 에너지라는 막연한 단어에 들어있는

무색/무취라고 생각합니다.



만져지지 않고,

보이지 않으며,

냄새도 없는 에너지라는 점이죠!!



잘못 사용된 에너지가 우리 안전의 치명적인 위험요인이 될 수 있습니다.



아래는 전기안전교육 자료입니다.

일반 근로자를 대상으로 작성하여 교육자료로 바로 사용이 가능할 것 입니다.



[Contents]



[Electrocution Statistics]

• About 5 workers are electrocuted every week
• Causes 12% of young worker workplace deaths
• Takes very little electricity to cause harm
• Significant risk of causing fires
• The most potential area of Risk
• Second leading cause of death in construction



[Electrical Definition]





[Mishap Outcomes]

Burns

Electrocution

Shocks

Arc Flash / Arc Blast

Fire

Explosions



[Common Direct Causes]



[Common Indirect Causes]



[Burns]



[Electrocution & Shock]



[Electrical Shock]

    Dangers of Electical Shock

• Currents greater than 75 mA can cause ventricular fibrillation
• Will cause death in a few minutes unless a defibrillator is used
• 74 mA is not much current - a small power drill uses 30 times as much

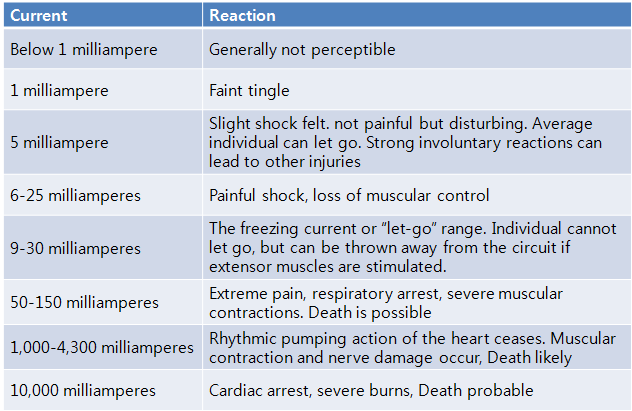

[Electrical Shock Chart]

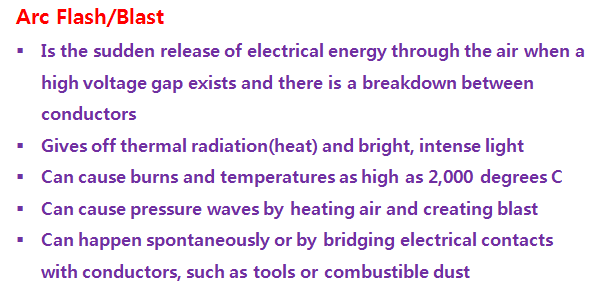

[Arc Flash/Blast]

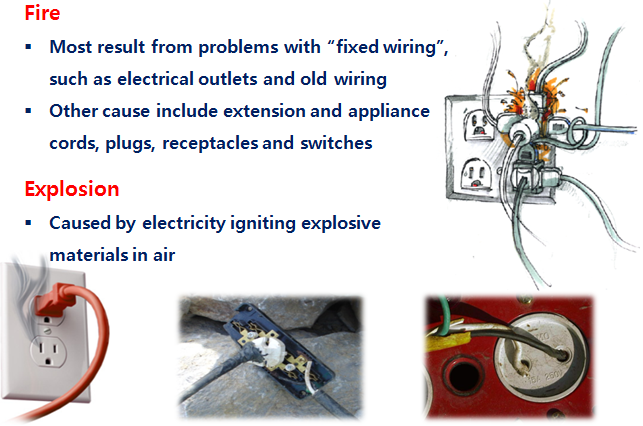

[Fire & Explosion]







[Qualified Personnel]

Electrical work shall be performed by Qualified Personnel

with verifiable credentials who are familiar

with applicable code requirement







[Controlling Electrical Hazards]

Organization uses various methods to protect

all people involved from hazards associated with electricity



[Safety Distance]

Commonly used with regard to power lines



[Isolation & Guarding]

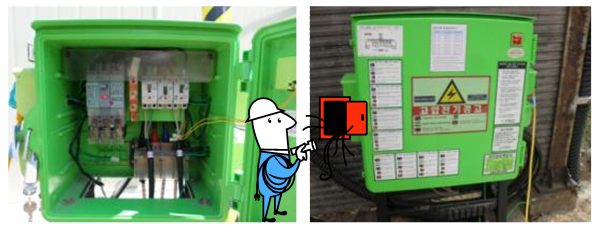

[Enclosure of electrical parts]

A major concept of electrical wiring in general, e.g.,

all connections are made in a box



[Grounding]

[Insulation]

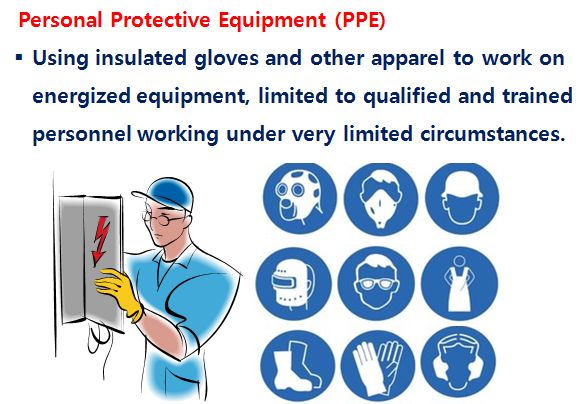

[PPE]

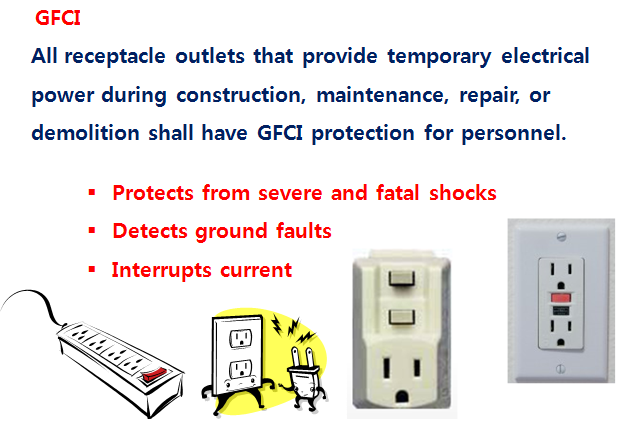

[Ground Fault Circuit Interrupter]



[Testing GFCI's]





[Lock out / Tag out Procedures]



[Recognize Hazards]



[Protective Measures]





[Closing]

눈에 보이지 않는 전기는 코끼리까지 사망에 이르게 하는 위험요인을 갖고 있습니다.
